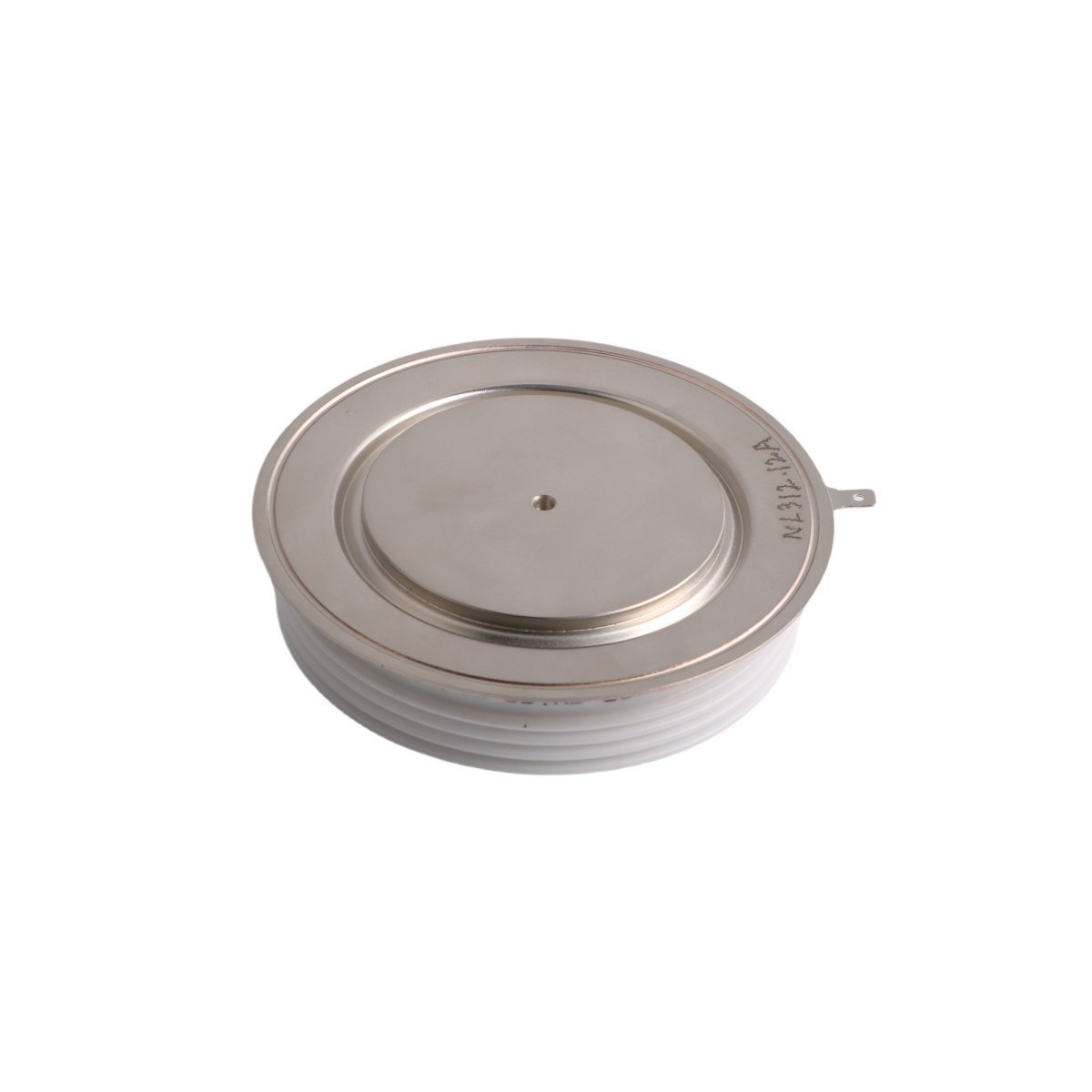

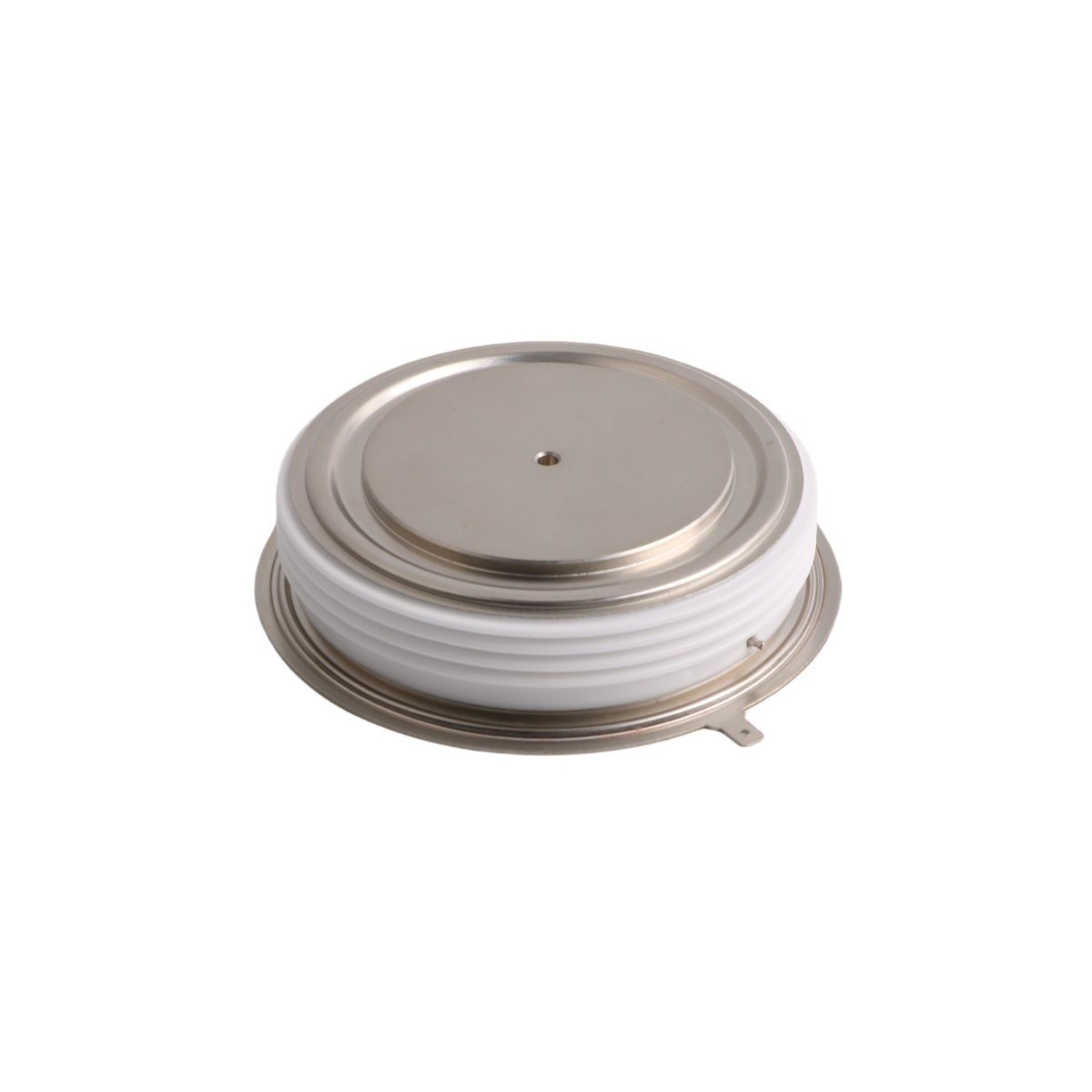

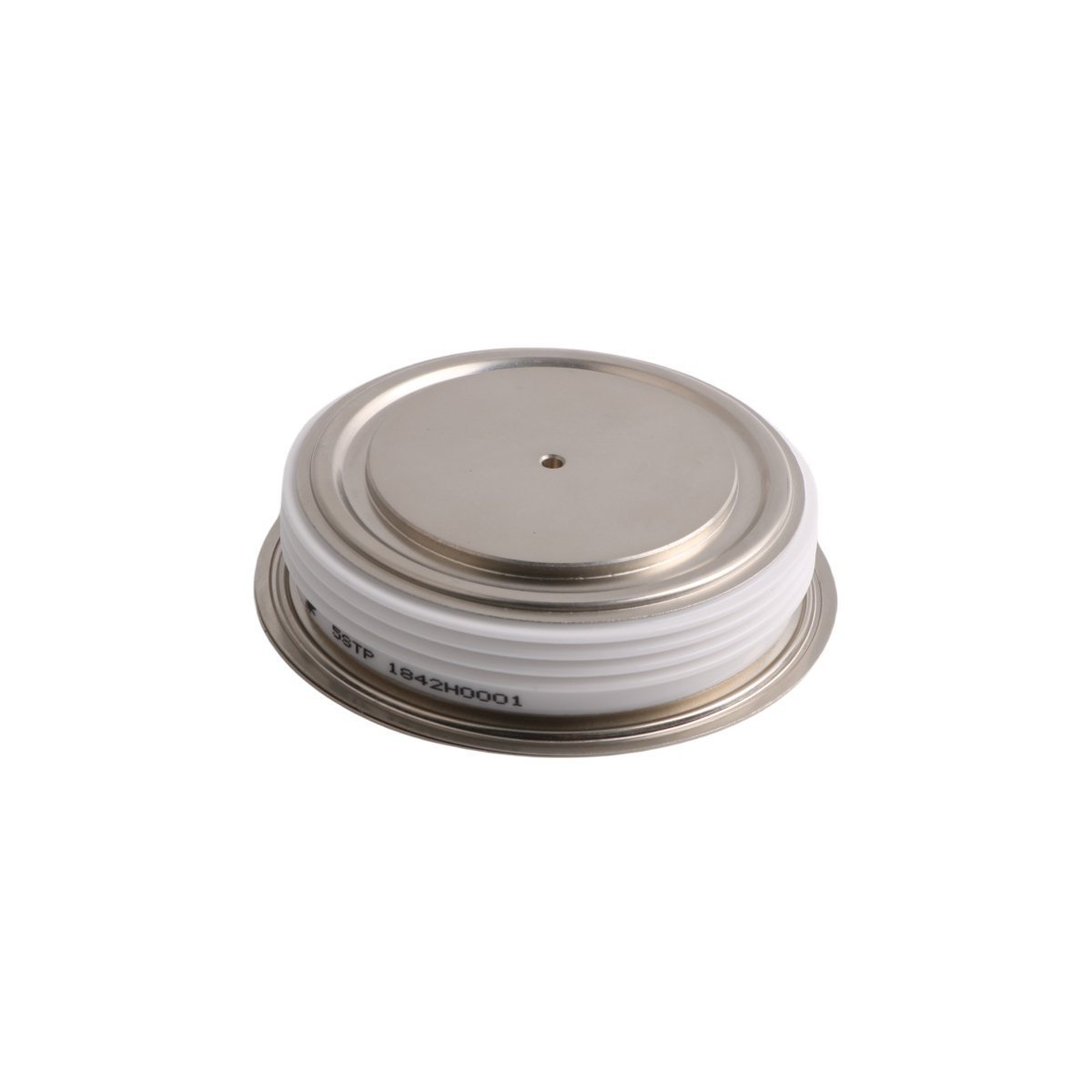

ABB 3BHL000986P3016 5STP1752H0002 IGCT Module

The ABB 3BHL000986P3016 5STP1752H0002 functions as a high-performance Integrated Gate-Commutated Thyristor (IGCT) module. Engineers specifically developed this component for high-power switching within Advant OCS and 800xA control architectures. It combines the advantages of traditional thyristors with the high-speed switching capabilities of transistors. This module ensures stable power regulation in demanding industrial environments.

Core Performance Features

This IGCT module delivers a robust 1700V blocking voltage to prevent electrical breakdown. It handles a nominal current of 2000A with a surge peak capacity reaching 20kA. The design utilizes a low junction-to-case thermal resistance of 0.02K/W. This feature allows for efficient heat dissipation during continuous high-load operations. Furthermore, the unit supports switching frequencies up to 500Hz for precise energy conversion.

Technical Specifications

• Brand: ABB
• Model: 5STP1752H0002
• Part Number: 3BHL000986P3016
• Component Type: IGCT Module / Crowbar Thyristor
• Blocking Voltage: 1700V
• Nominal Current: 2000A
• Operating Temperature: -40°C to +125°C
• Storage Temperature: -40°C to +140°C
• Gate Trigger Voltage: 1.5V – 2.5V
• Physical Dimensions: 35 x 29 x 6.5 cm
• Net Weight: 2.56 kg
• Manufacturing Origin: Sweden

Industrial Applications

The 3BHL000986P3016 proves essential for HVDC transmission and Flexible AC Transmission Systems (FACTS). It also serves as a critical component in medium-voltage drives and renewable energy grids. Large-scale industrial plants rely on this module for grid stabilization and high-efficiency power conversion. Because of its compact footprint, it integrates seamlessly into modern power cabinets and control suites.

Operational Reliability

High-grade Swedish manufacturing ensures this module meets global industrial standards for durability. The optimized gate control allows for rapid response times during critical power events. Its wide temperature tolerance protects the circuitry in extreme outdoor or industrial climates. Therefore, the module maintains system integrity while reducing overall conduction losses in the power loop.
