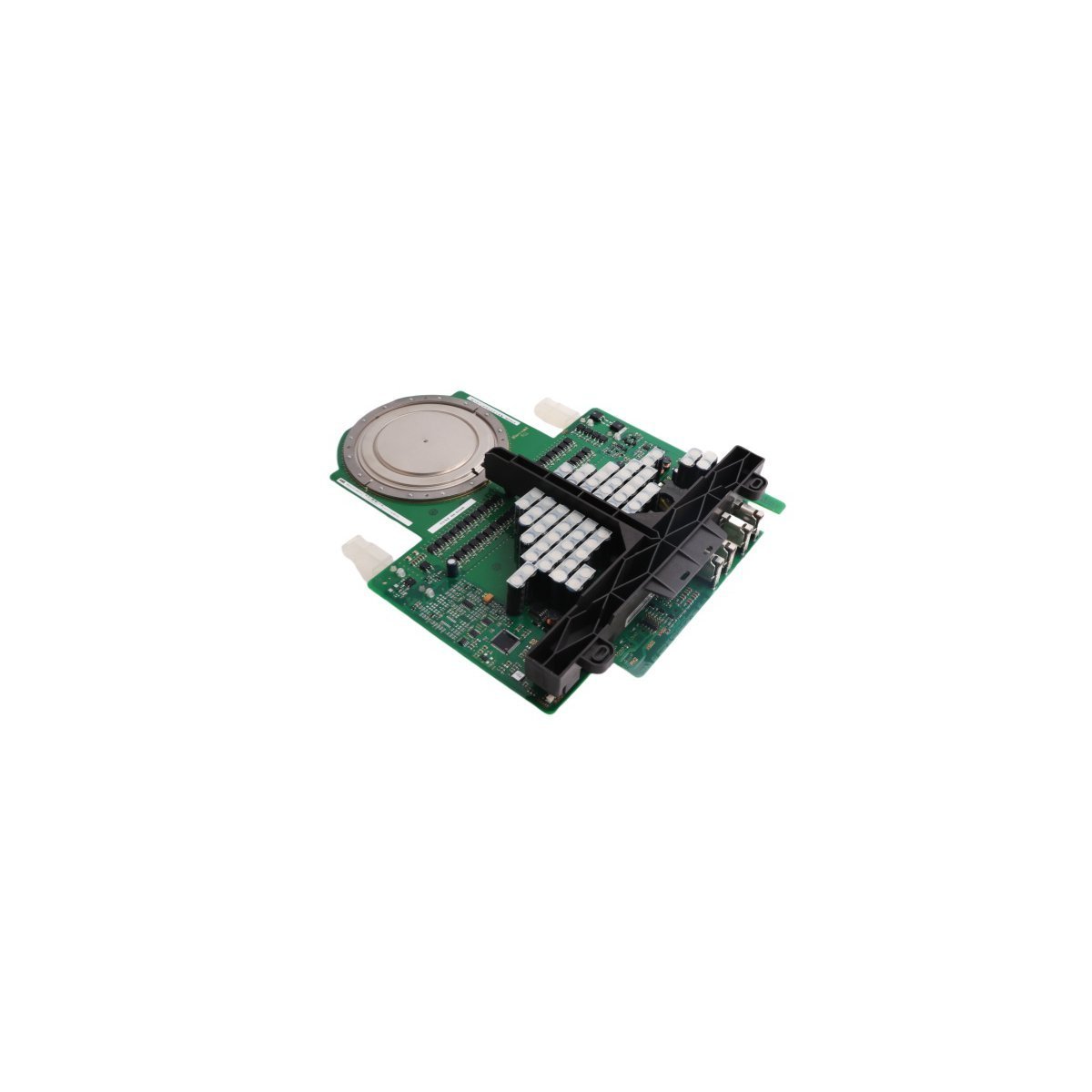

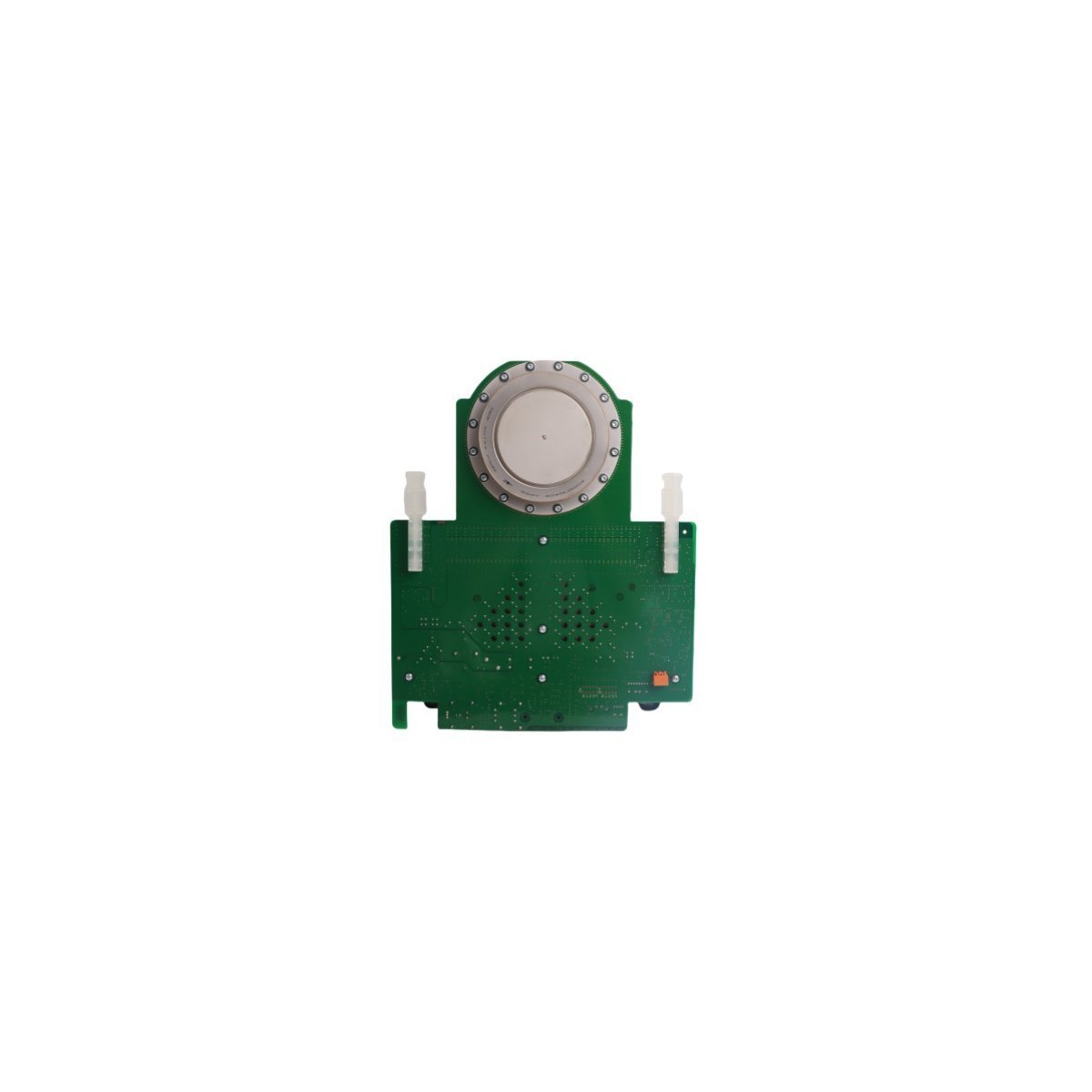

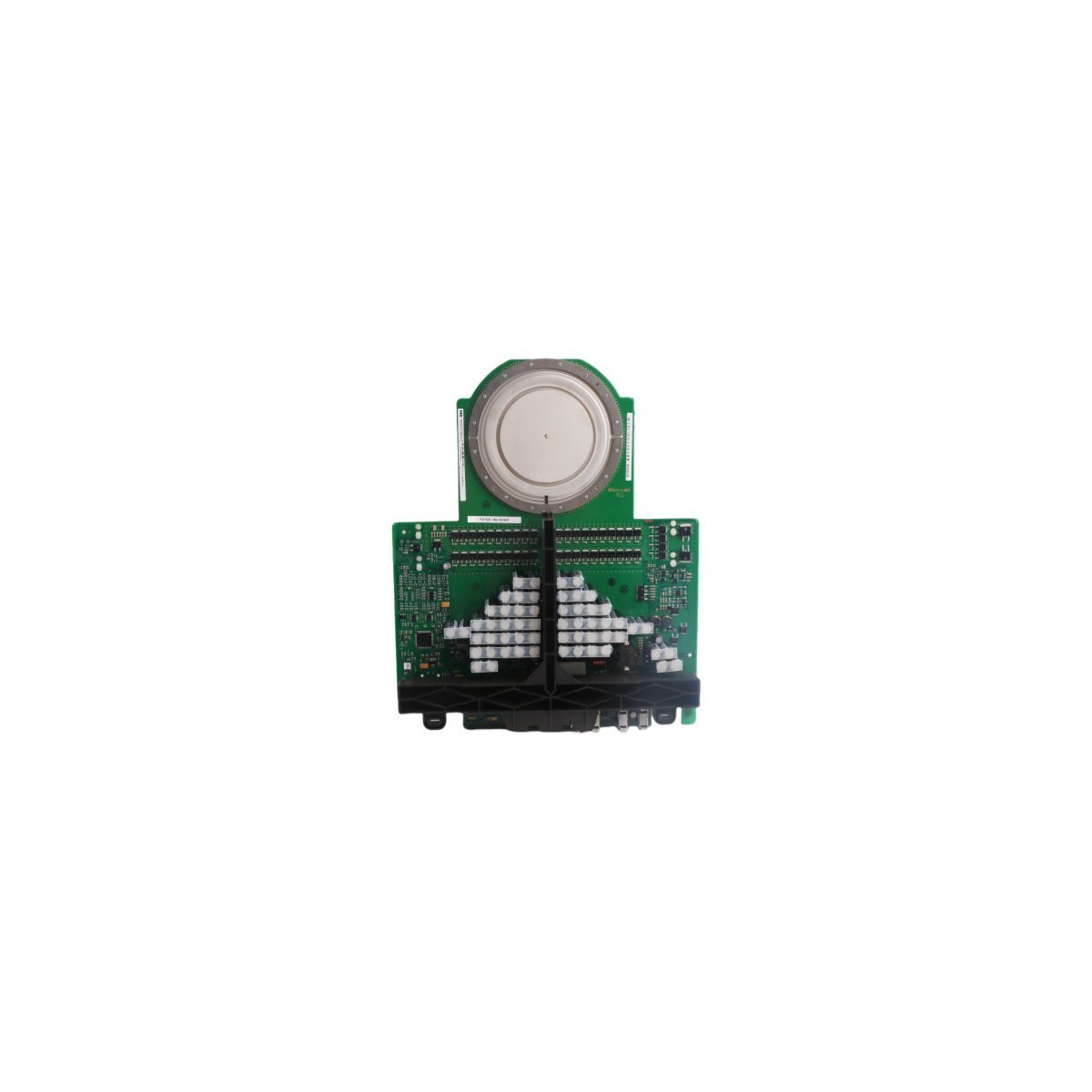

ABB 3BHB012961R0001 5SHX 2645L0002 IGCT Module

The ABB 3BHB012961R0001, belonging to the 5SHX 2645L0002 Integrated Gate-Commutated Thyristor (IGCT) series, represents a pinnacle in power electronics technology. This module combines the fast switching speed of an IGBT with the low conduction losses of a GTO thyristor. By integrating the gate unit into the semiconductor package, the IGCT achieves exceptionally low inductance, which allows for precise control of high-voltage currents. Consequently, this module serves as a foundational component in large-scale frequency converters and power distribution systems, where maintaining thermal stability and switching efficiency is critical for operational longevity.

Technical Performance Parameters

Designed for heavy-duty industrial utility, the 5SHX 2645L0002 delivers high-current handling within a specialized footprint. The following specifications detail its operational capabilities:

Robust Engineering for Extreme Environments

ABB specifically engineered the 3BHB012961R0001 to endure the most rigorous industrial climates. Because the module supports an ultra-wide operating temperature range from -40°C to +100°C, it performs reliably in everything from remote wind turbine nacelles to high-heat smelting facilities. The Class H insulation ensures that the module retains its structural and electrical integrity under intense thermal stress. Furthermore, the compact design facilitates straightforward maintenance and replacement within complex gas turbine modules or large-scale DCS racks. By offering a 99% energy efficiency rating, the hardware minimizes waste heat and contributes to the overall sustainability of the power plant or factory.

Strategic Industrial Applications

The versatility of the 5SHX 2645L0002 makes it a primary choice for various high-demand sectors. In renewable energy, the module facilitates the conversion of DC power from solar or wind sources into grid-synchronized AC. Meanwhile, in the heavy machinery sector, industrial drives utilize this IGCT to manage the torque and speed of massive electric motors. Moreover, marine propulsion systems and gas turbine control units rely on this module for precision power modulation. Since the module carries ABB’s hallmark of Swedish quality, it provides global operators with the confidence that their critical infrastructure will remain active and efficient under continuous load.
