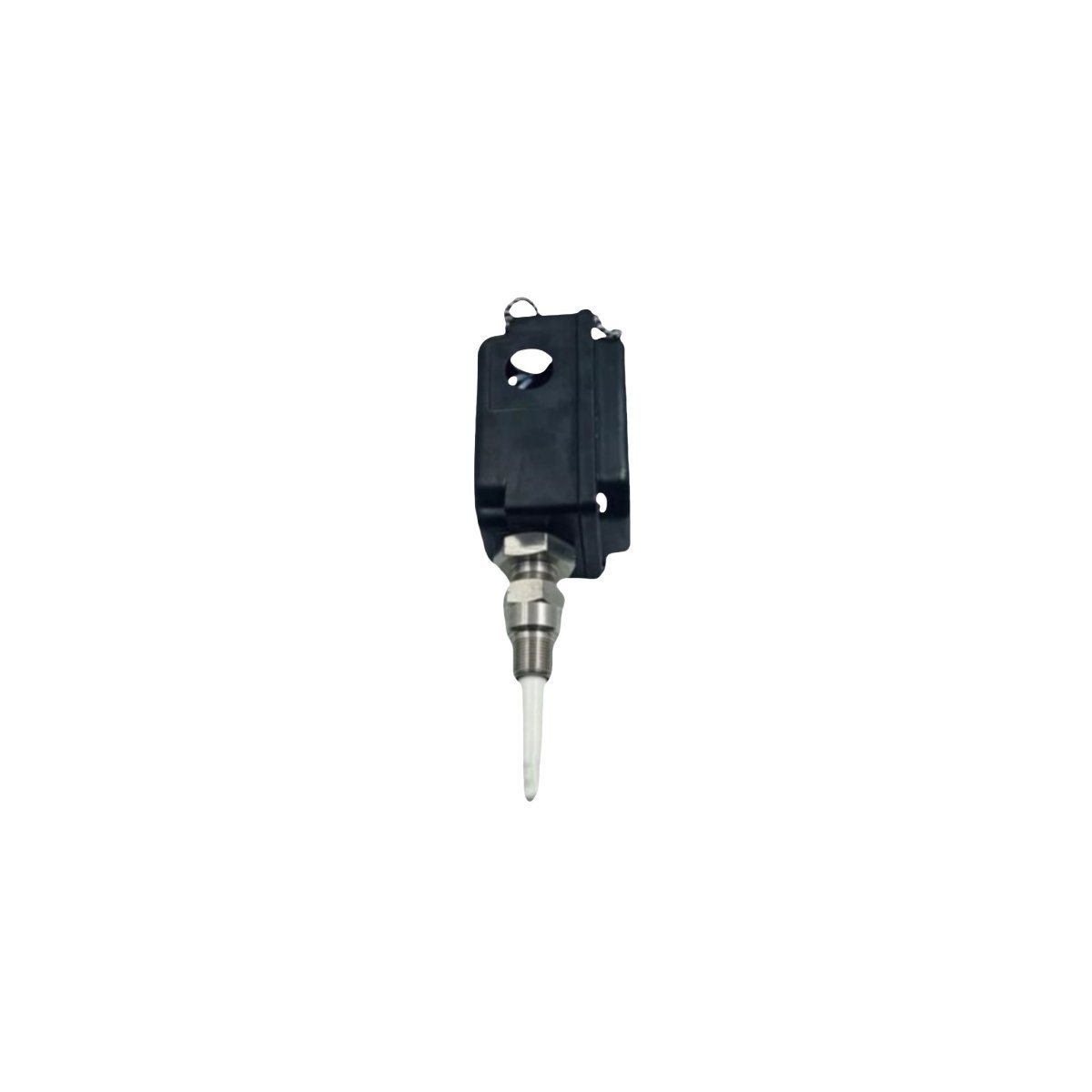

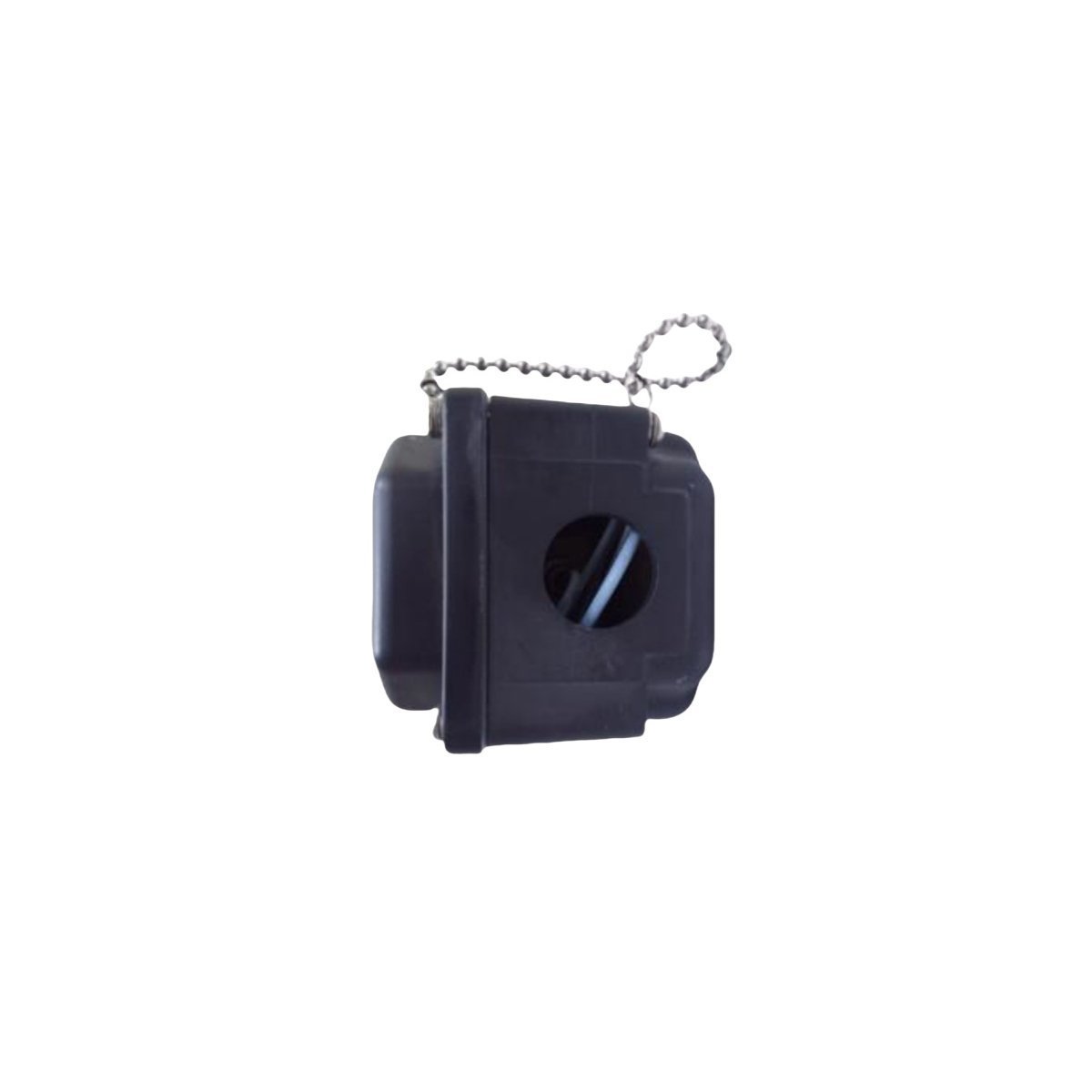

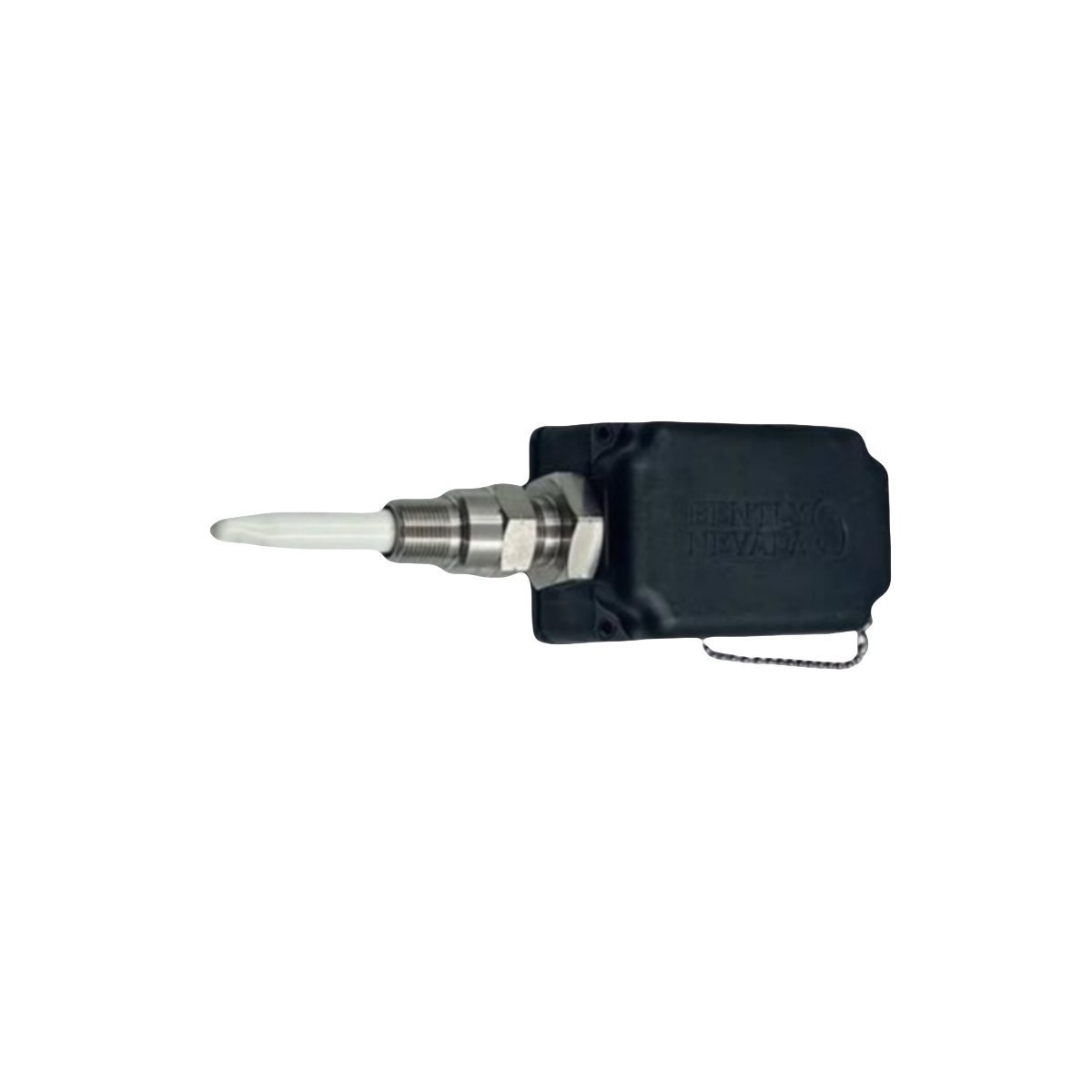

330881-28-04-145-06-02 | Bently Nevada | PROXPAC XL Proximity Transducer

A. Technical Overview

The Bently Nevada 330881-28-04-145-06-02 PROXPAC XL Proximity Transducer processes high-frequency eddy-current signals from standard 3300/3500-series proximity probes. It converts probe coil impedance changes into calibrated DC voltage outputs (−2 to −18 VDC) proportional to target displacement. Signal conditioning includes analog filtering, temperature compensation, and linearization per API 670 (4th Ed.). The transducer integrates directly into the Bently Nevada 3500 Monitoring System rack via a 3500/22M or 3500/25M monitor module, communicating over the proprietary 3500 backplane bus. It protects the backplane by optically isolating probe inputs and limiting fault current during short-circuit or lightning-induced transients. Compatible with Experion PKS (via 3500 integration modules) and SIMATIC S7-400 systems using Siemens-compatible 3500 gateway interfaces.

B. Detailed Specifications Table

C. Operational Capabilities

This transducer monitors shaft vibration, axial position, and differential expansion in rotating machinery. In Oil & Gas, it supports compressor trains on offshore platforms where G3 conformal coating resists salt-laden humidity and hydrocarbon vapors. In Power Generation, units operate continuously for >18 months between calibrations in turbine-generator sets compliant with IEC 61508 SIL 2 requirements. Aerospace test stands use its hot-swap capability (with 3500/25M) to replace modules under power during engine validation runs. In discrete manufacturing, dual-channel configurations track bearing housing motion on high-speed spindles—maintaining ±0.25% full-scale linearity after 50,000 thermal cycles (−20 °C to +70 °C).

D. Technical FAQ

Q1: Does 330881-28-04-145-06-02 support backward compatibility with legacy 3500/22 firmware versions below v4.1?

No. This unit requires 3500 system firmware v4.1 or higher. Units shipped prior to Q3 2019 used v3.8 backplane timing; attempting operation below v4.1 triggers continuous “Bus Sync Error” alarms and disables channel enablement. Verify firmware via 3500 front-panel display (Menu > System > Version) before insertion.

Q2: Can this transducer accept non-Bently Nevada 5 mm probes (e.g., SKF or Metrix) without recalibration?

No. Probe sensitivity is hard-coded into the transducer’s EEPROM during factory calibration. Using a non-matched probe causes gain mismatch: a 5 mm Metrix probe (8.0 mV/µm) paired with this unit (calibrated for 7.87 mV/µm Bently spec) introduces ±3.2% zero-offset error and invalidates API 670 alarm thresholds. Always match probe part number suffixes (e.g., 330104-00-05-05-02-00) to transducer calibration ID printed on label.
