330130-045-11-05 Cable | Bently Nevada 3300 XL | Brand New Original

Product Overview

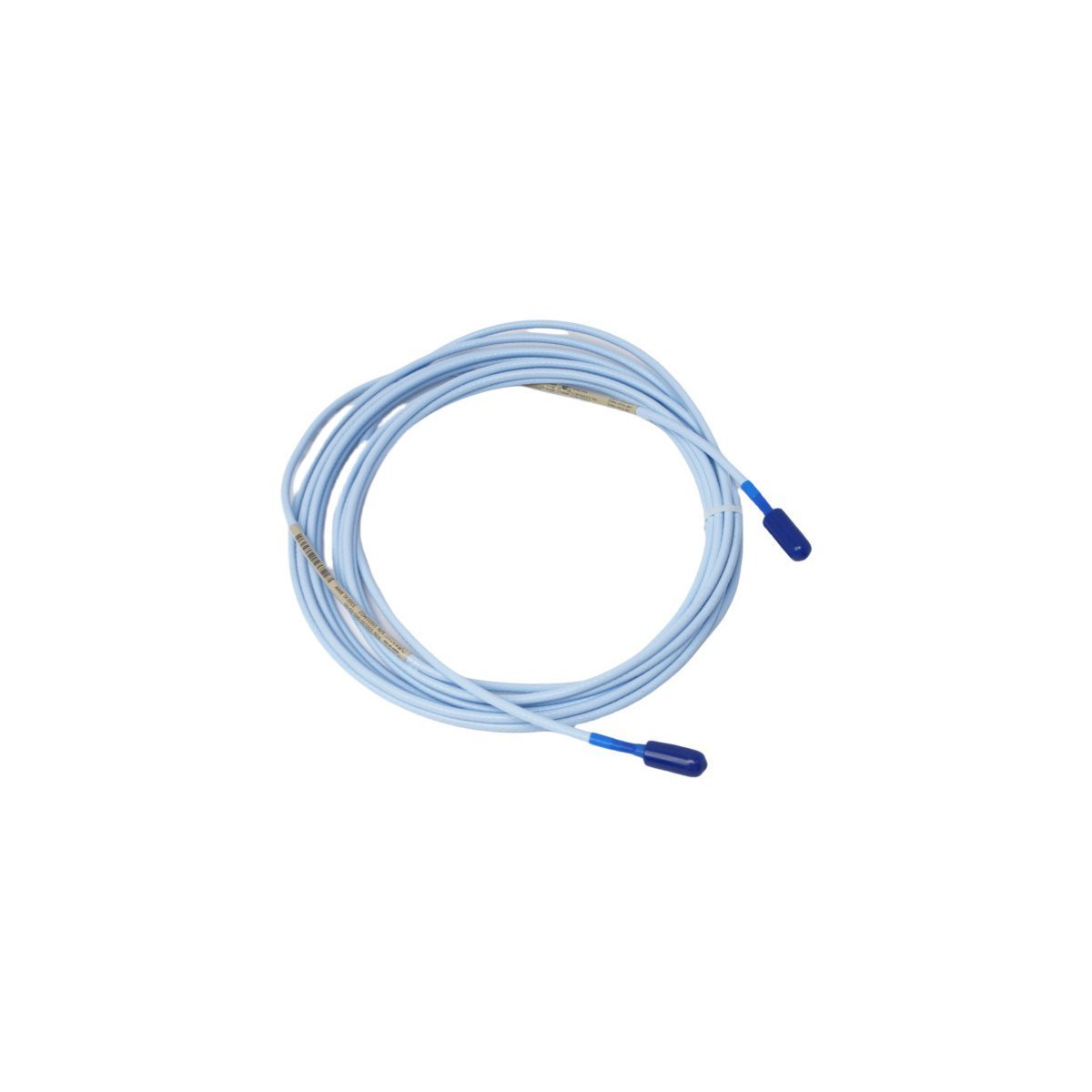

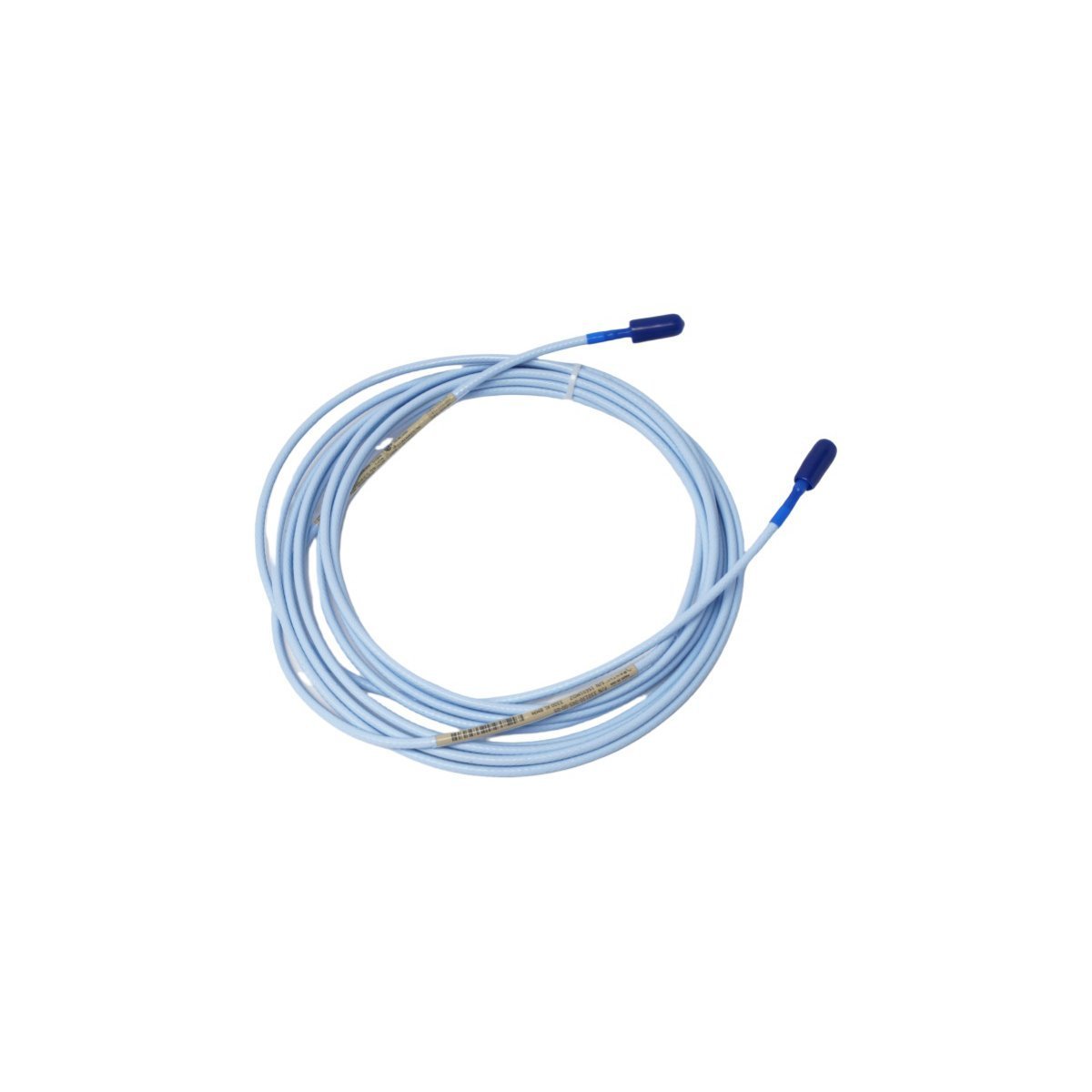

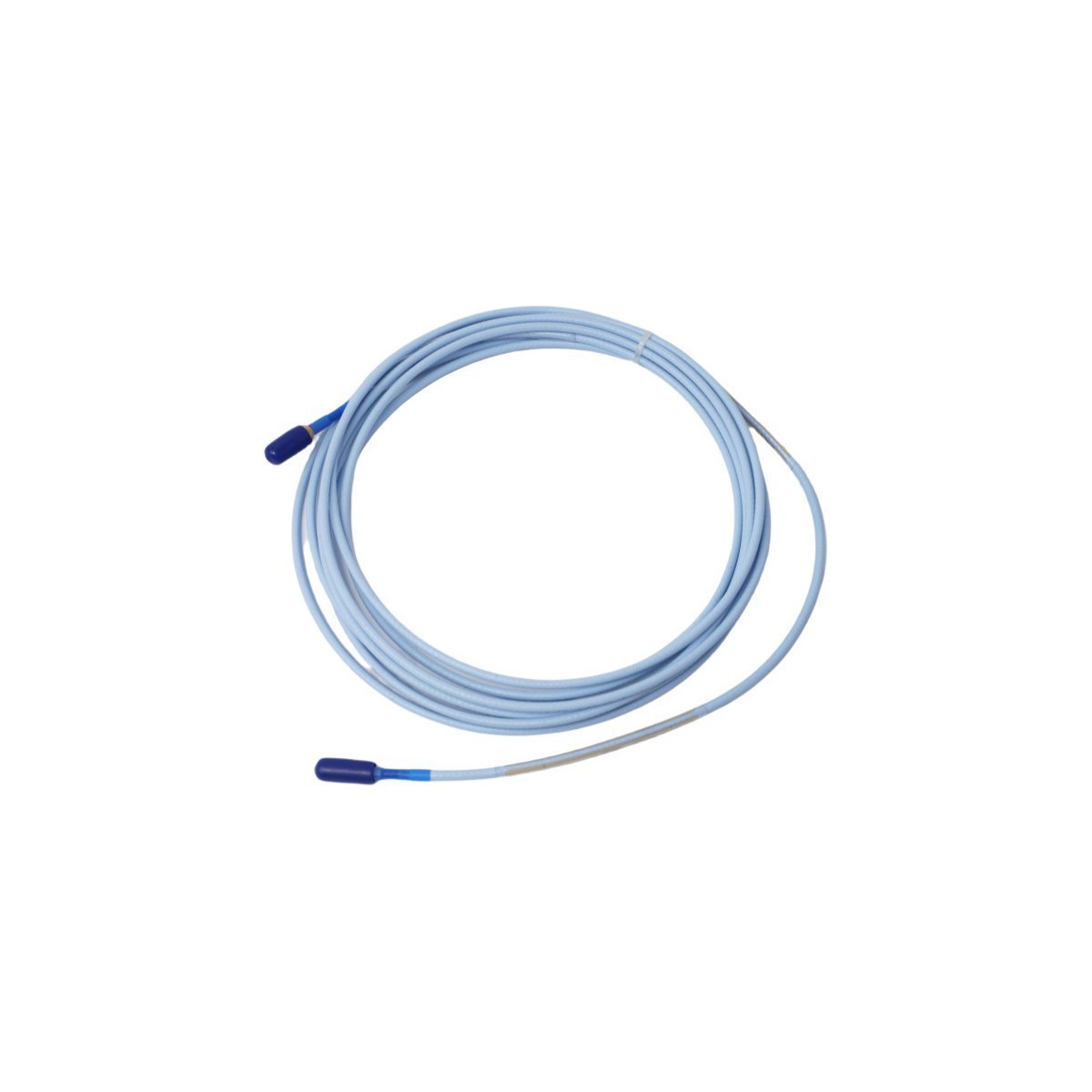

The Bently Nevada 330130-045-11-05 acts as a critical signal transmission link within the 3300 XL 8mm Proximity Transducer System. This 4.5-meter armored extension cable bridges the gap between the proximity probe and the Proximitor sensor. By maintaining high-fidelity impedance matching, this cable enables the system to convert the physical distance between the probe tip and the target into a precise voltage output. This data allows for the accurate measurement of both static shaft position and dynamic vibration levels in high-speed rotating machinery. We offer this product as 100% Brand New and Original, ensuring it meets all factory calibration standards.

Part Number Breakdown: 330130-AAA-BB-CC

Technical Specifications

Engineering Advantages

• Superior Signal Integrity: The 330130-045-11-05 maintains a constant capacitance and impedance across its entire length. This prevents signal attenuation and ensures the Proximitor sensor receives an accurate “Eddy Current” signature from the probe.
• Aggressive Environment Protection: The stainless steel interlocking armor protects the internal coaxial core from mechanical crushing and abrasion. Furthermore, the FEP jacket resists corrosive industrial fluids, such as synthetic lubricating oils and chemical solvents.
• Simplified TSI Integration: This cable facilitates seamless integration into Turbine Supervisory Instrumentation (TSI). It enables the monitoring of fluid-film bearing machines, where detecting early shaft misalignment or thermal growth is vital for operational safety.
• EMI/RFI Resistance: The shielded design rejects electromagnetic interference from nearby heavy-duty motors and switchgear. This ensures clean vibration data reaches your PLC or DCS without ghost alarms or signal noise.

FAQs

• Can I use this 4.5m cable with a 5m system probe?

  Yes. The 330130-045-11-05 is designed specifically for 5-meter total system lengths (0.5m probe + 4.5m extension cable). Always ensure your Proximitor sensor matches this total electrical length to avoid calibration errors.

• Does the armor affect the electrical performance?

  No. The stainless steel armor provides mechanical protection only. The internal coaxial cable handles the electrical signal, maintaining a high signal-to-noise ratio even in high-vibration zones.

• What are the installation requirements regarding the connectors?

  We recommend using the 3300 XL connector protector kits when installing in areas with high moisture or oil mist. Finger-tighten the gold-plated ClickLoc connectors to ensure a secure, vibration-resistant connection without over-torquing.

• Is this cable compatible with older 3300 (non-XL) systems?

  While the 3300 XL system is backwards compatible with many legacy 3300 components, we suggest replacing the entire loop with 3300 XL hardware to benefit from the improved linear range and temperature stability.
