The Bently Nevada 330106-05-30-10-12-00 is a high-performance 3300 XL 8 mm reverse mount proximity probe engineered for critical machinery protection. This 100% brand-new transducer features a 3/8-24 UNF thread, a 1.0-meter total length, and robust ClickLoc connectors, making it ideal for monitoring vibration and position in high-temperature turbine and compressor applications.

Yoast Meta Description

Bently Nevada 330106-05-30-10-12-00 3300 XL Reverse Mount Probe offers precision vibration sensing. 100% Brand New. USA Origin. Increase plant safety today.

Brief Product Description

This specialized eddy current sensor enables non-contacting measurement of shaft vibration and displacement in industrial rotating equipment. Its reverse-mount design specifically facilitates secure installation through machine housings or brackets where front-side access is restricted.

Product Overview

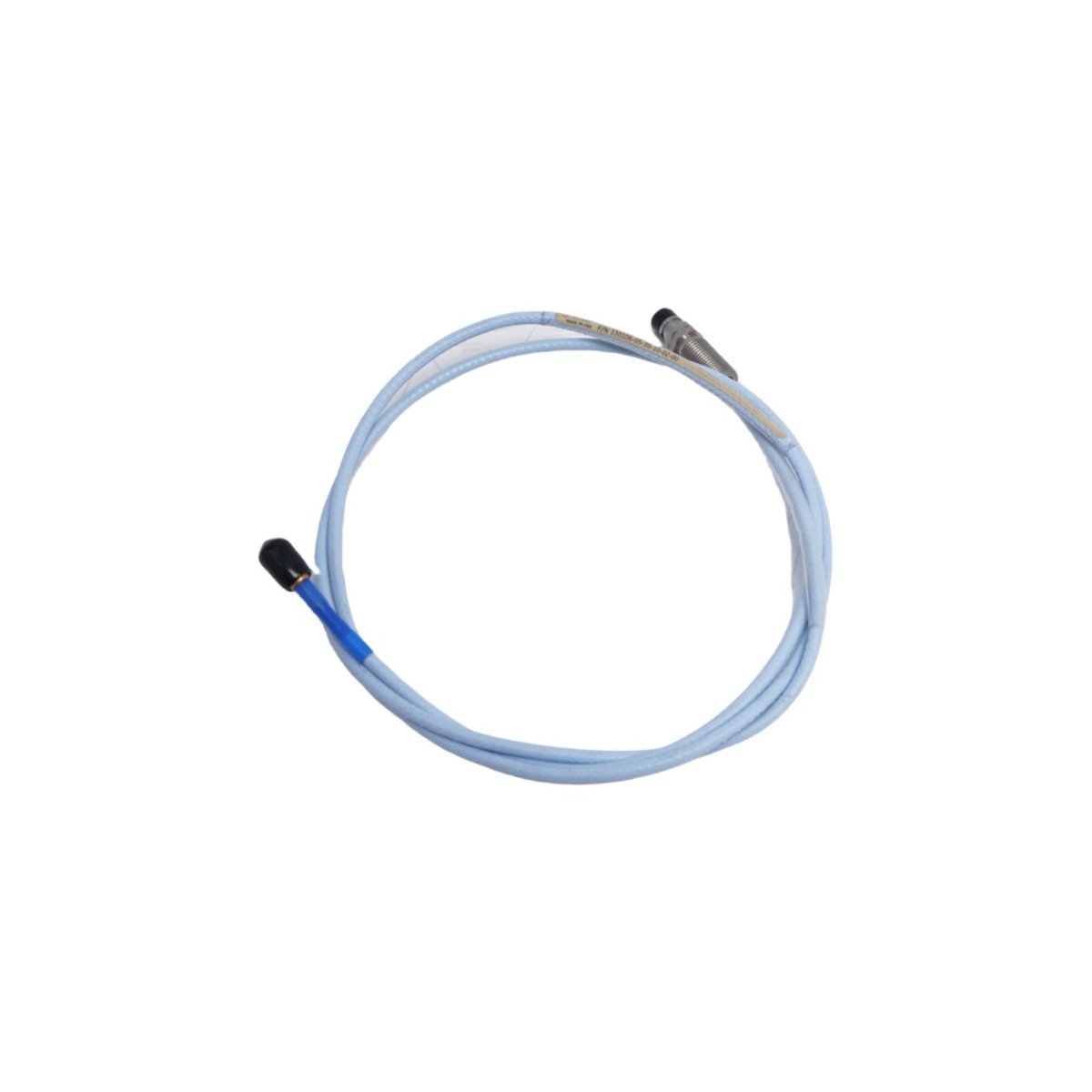

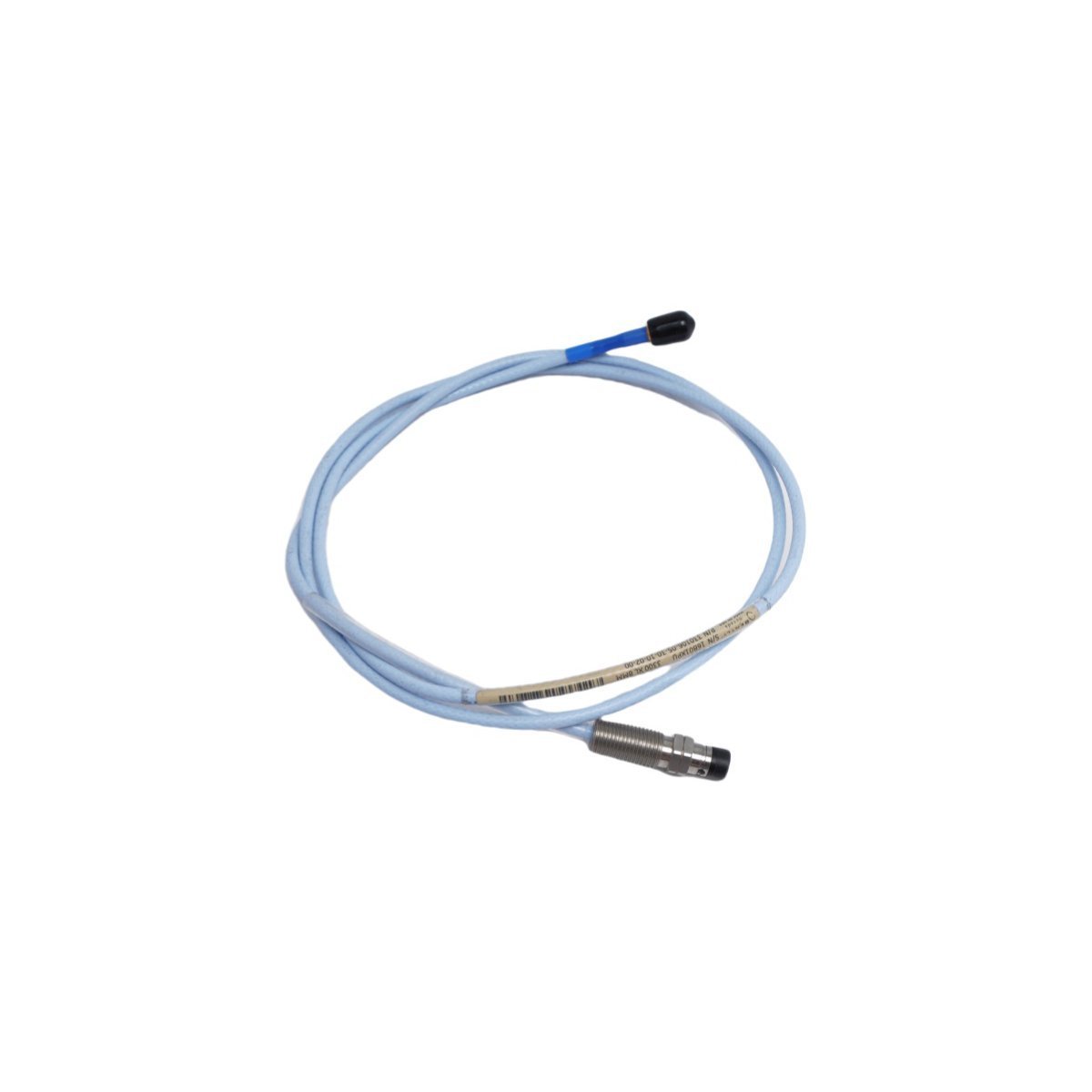

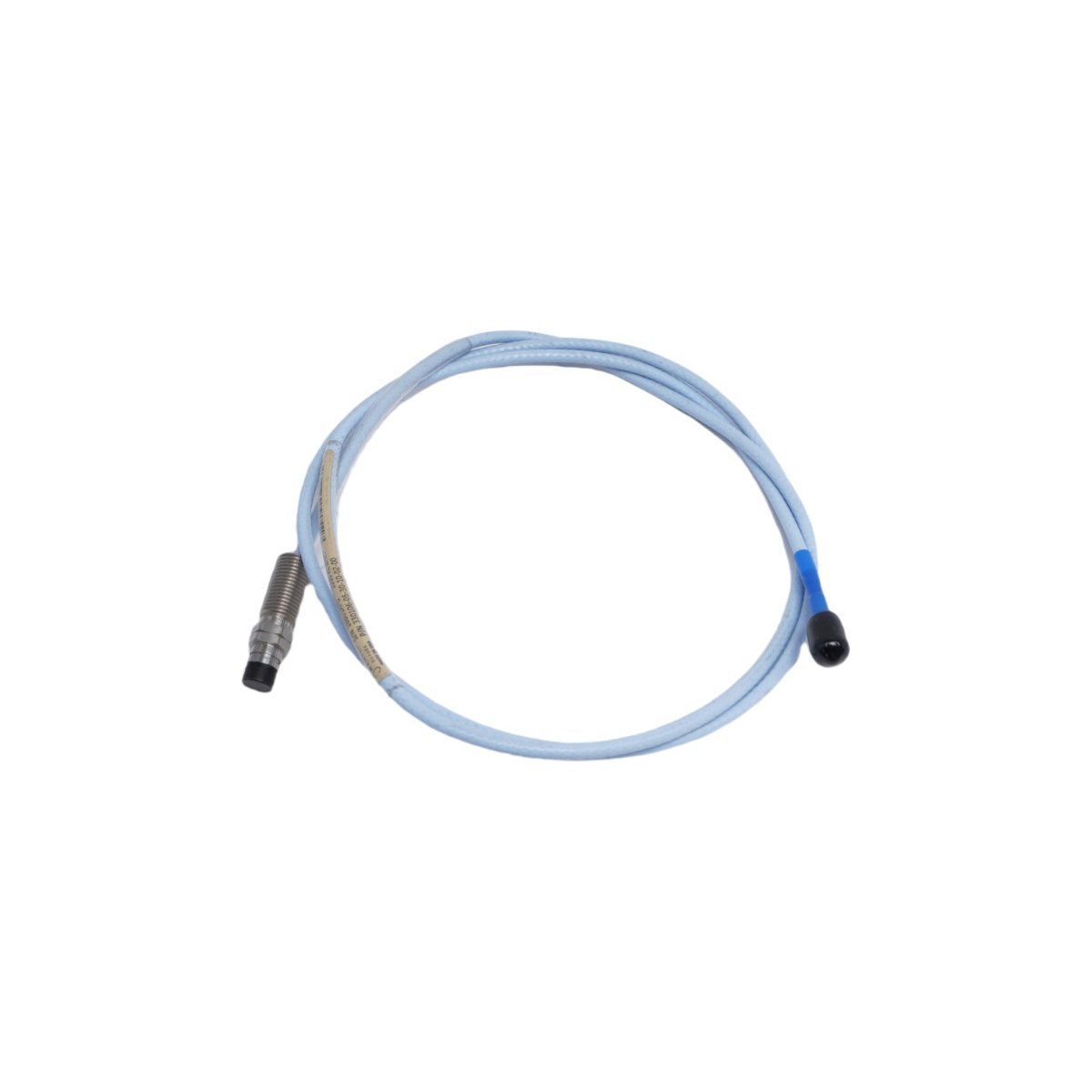

The Bently Nevada 330106-05-30-10-12-00 facilitates advanced machinery diagnostics by capturing real-time shaft motion data. As a cornerstone of the globally recognized 3300 XL Proximity Transducer System, this reverse-mount variant provides superior linearity and temperature stability. This probe utilizes a 3/8-24 UNF thread pattern and integrates seamlessly with Proximitor sensors to deliver a standard 200 mV/mil (7.87 V/mm) output. We supply this unit as 100% Brand New, ensuring full compliance with original factory specifications and reliability standards.

Technical Specifications

The following parameters define the 330106-05-30-10-12-00 configuration within the 3300 XL series:

• Model Number: 330106-05-30-10-12-00
• Thread Option (05): 3/8-24 UNF threads
• Overall Case Length Option (30): 3.0 inches
• Total Length Option (10): 1.0 meter (3.3 feet)
• Connector Option (12): Miniature coaxial ClickLoc connector with Fluid Loc protector
• Agency Approval Option (00): Not required
• Linear Range: 2.0 mm (80 mils)
• Frequency Response: 0 Hz to 10 kHz
• Operating Temperature Range: -51 °C to +177 °C (-60 °F to +351 °F)
• Nominal Sensitivity: 7.87 V/mm (200 mV/mil)
• Weight: 0.15 kg

Engineering and Design Advantages

In addition to its precise sensing capabilities, the 330106 series employs patented TipLoc technology, which strengthens the bond between the probe tip and the stainless steel body. This mechanical integrity effectively prevents tip separation under the high-vibration conditions common in steam turbines and hot gas compressors. Furthermore, the 3300 XL system supports complete interchangeability, allowing users to swap probes and extension cables in the field without requiring individual system recalibration.

To enhance connectivity, Bently Nevada utilizes gold-plated ClickLoc connectors. These connectors resist corrosion and provide positive “click” feedback during assembly, ensuring a secure lock without the need for specialized torque tools. Moreover, the 1.0-meter probe cable features a high pull-strength rating, which protects internal signal integrity from accidental mechanical stress during installation or maintenance intervals.

Application and Installation

Industrial facilities utilize the 330106-05-30-10-12-00 primarily for radial vibration monitoring and axial thrust position sensing. Because the reverse-mount configuration threads into the machine from the outside in, it significantly simplifies the replacement process for probes mounted in deep or obstructed boreholes. Transitioning to 3300 XL technology allows plants to meet API 670 standards for machinery protection systems while simultaneously improving signal-to-noise ratios in electrically busy environments.

FAQs

How does the reverse mount probe differ from a standard 330103 probe?While both probes utilize the same sensing technology, the reverse mount 330106 probe is designed for installation through a mounting bracket or housing where the cable must pass through the mounting hole before the probe is secured. Consequently, it typically lacks the external hex nut found on standard forward-mount models.

Can I use this probe with an older 3300 Proximitor?The 3300 XL 8 mm probes are backward compatible with non-XL 3300 Proximitor sensors. However, to achieve the best temperature stability and performance, we recommend pairing this probe with a matching 3300 XL Proximitor sensor.

What is the purpose of the Fluid Loc connector option?The “12” option in the part number includes a Fluid Loc protector. This design prevents oil or other process fluids from leaking out of the machine through the coaxial cable, thereby ensuring the integrity of the sensor connection and the cleanliness of the installation site.
