21000-16-10-000-102-03-02 | Bently Nevada | Proximity Probe HousingAssemblies

21000-16-10-000-102-03-02 Product datasheet

21000-16-10-000-102-03-02 Functional Description

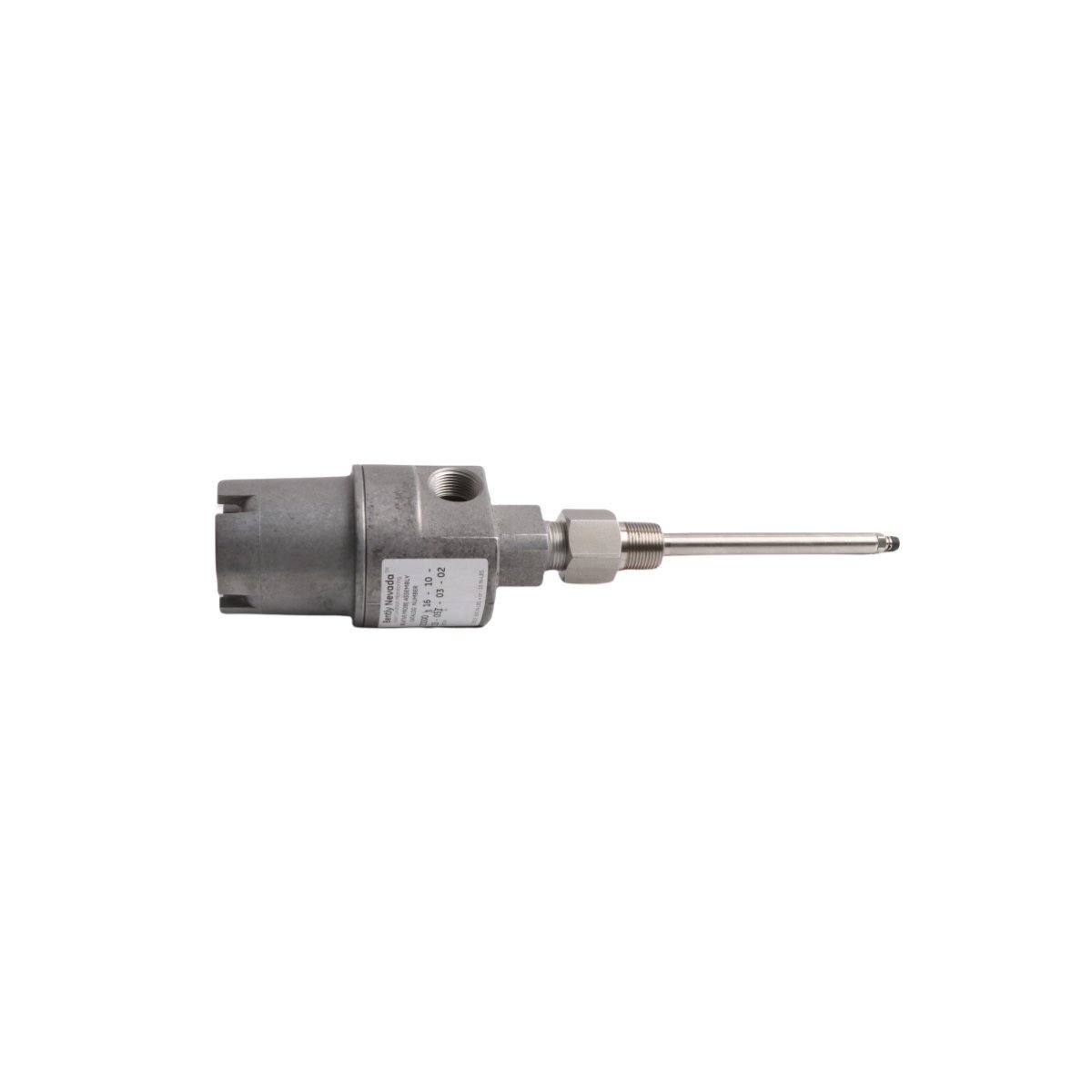

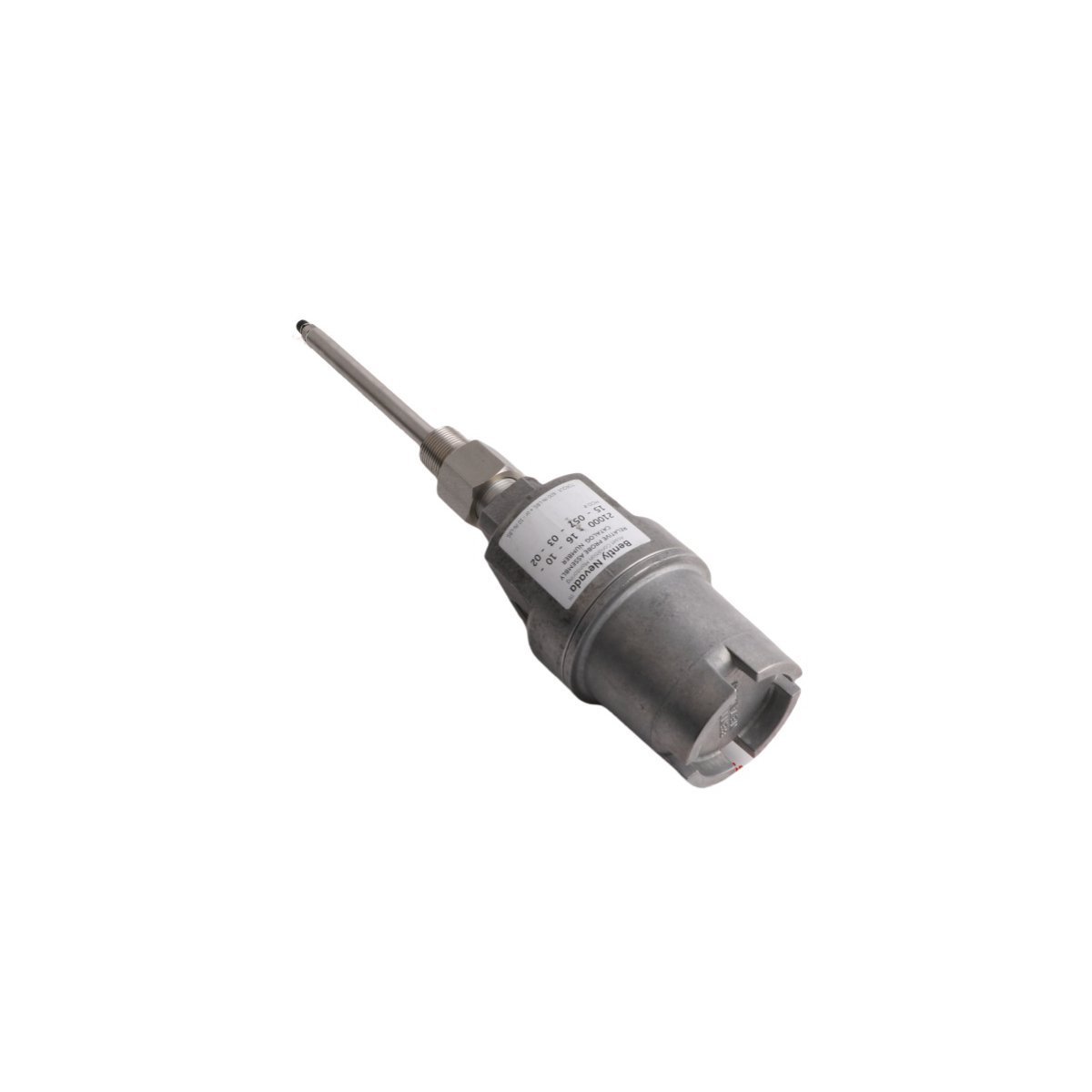

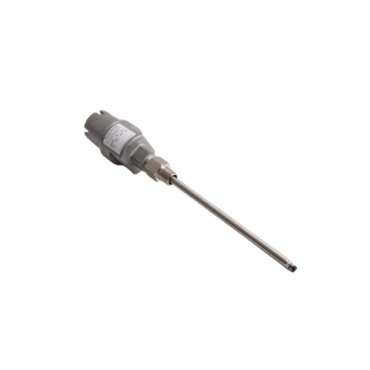

The Proximity Probe HousingAssemblies 21000-16-10-000-102-03-02is an aluminum explosion-proof housing assembly designed for secure mounting of 3300 XL 8mm proximity probes in hazardous areas. This rugged assembly features a 10.2-inch (259mm) standoff adapter and accommodates 1.0m (39in) probe cables, providing optimal positioning for vibration monitoring in turbines, compressors, and rotating equipment. The Bently Nevada 21000-16-10-000-102-03-02 includes 3/4-14 NPT threaded ports with comprehensive sealing components (O-rings, cable grips, and reducers) for CSA-approved explosion protection.

Engineered for demanding environments, the Proximity Probe HousingAssemblies 21000-16-10-000-102-03-02combines a dome cover, probe sleeve, and conduit fittings to create a complete protection system for proximity measurements. Its all-metal construction ensures durability in high-temperature/pressure applications while maintaining RFI/EMI immunity. The assembly supports both standard and reverse-mount probe configurations, offering flexibility for challenging installations where space constraints exist.

As part of Bently Nevada’s legacy housing solutions, the BENTLY NEVADA 21000-16-10-15-102-03-02 Proximity Probeprovides backward compatibility with existing systems, though newer 31000/32000 series housings are recommended for non-hazardous areas. This assembly is particularly valuable in oil & gas and chemical processing facilities requiring Class I, Division 1 hazardous location compliance.

The 21000-16-10-000-102-03-02 Bently Nevada Power Gearx delivers reliable probe protection through its multi-layer sealing system, including three cable grommet sizes (1/8-3/8in) and NPT thread seals. When properly installed with 3300 XL probes, the 21000-16-10-000-102-03-02 Sensor Probe Bently Nevadamaintains measurement accuracy for both dynamic vibration and static position monitoring, crucial for machinery protection systems in explosive atmospheres.
