2094-BM01-S Allen-Bradley 400V 3.9kW Safe-Off Motion Module

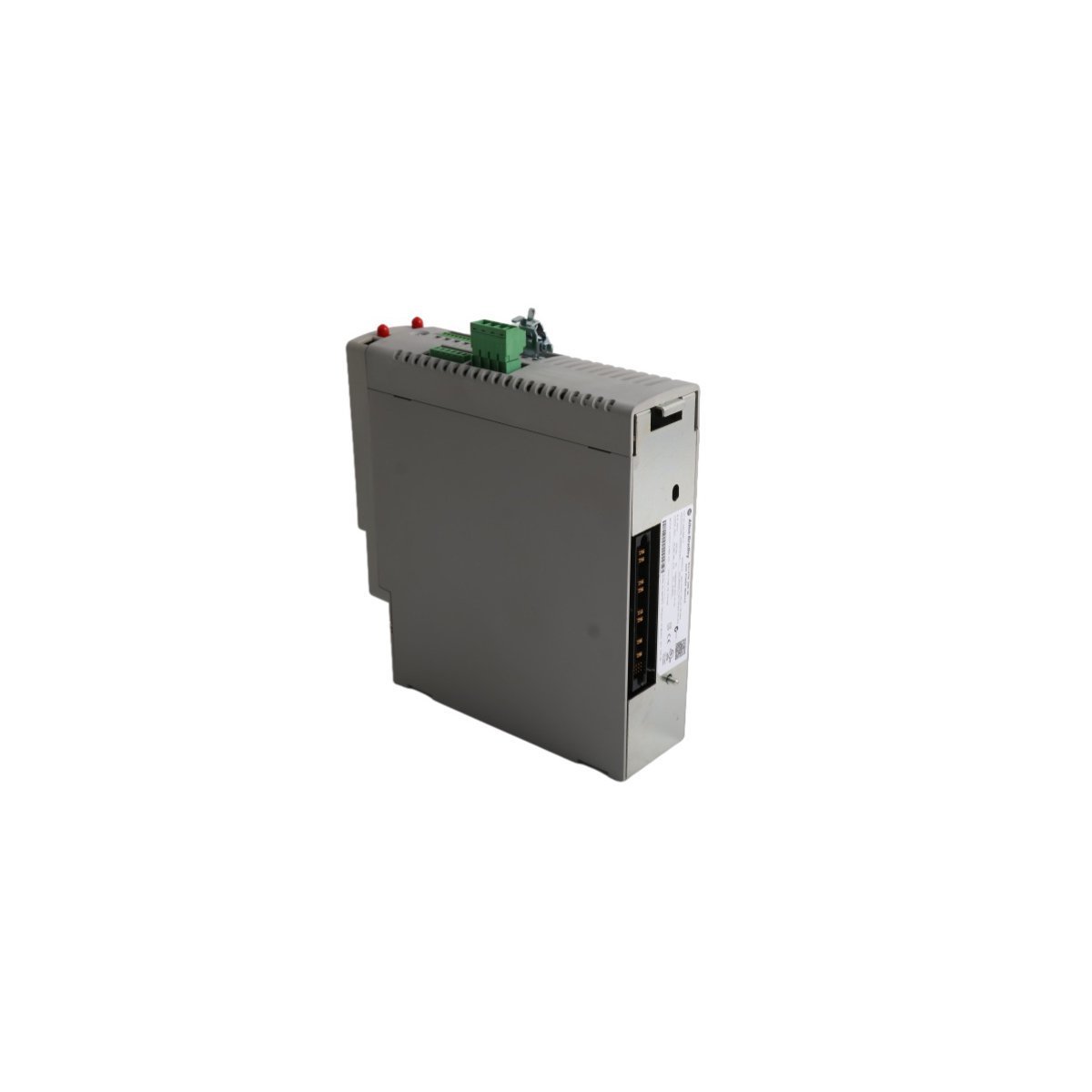

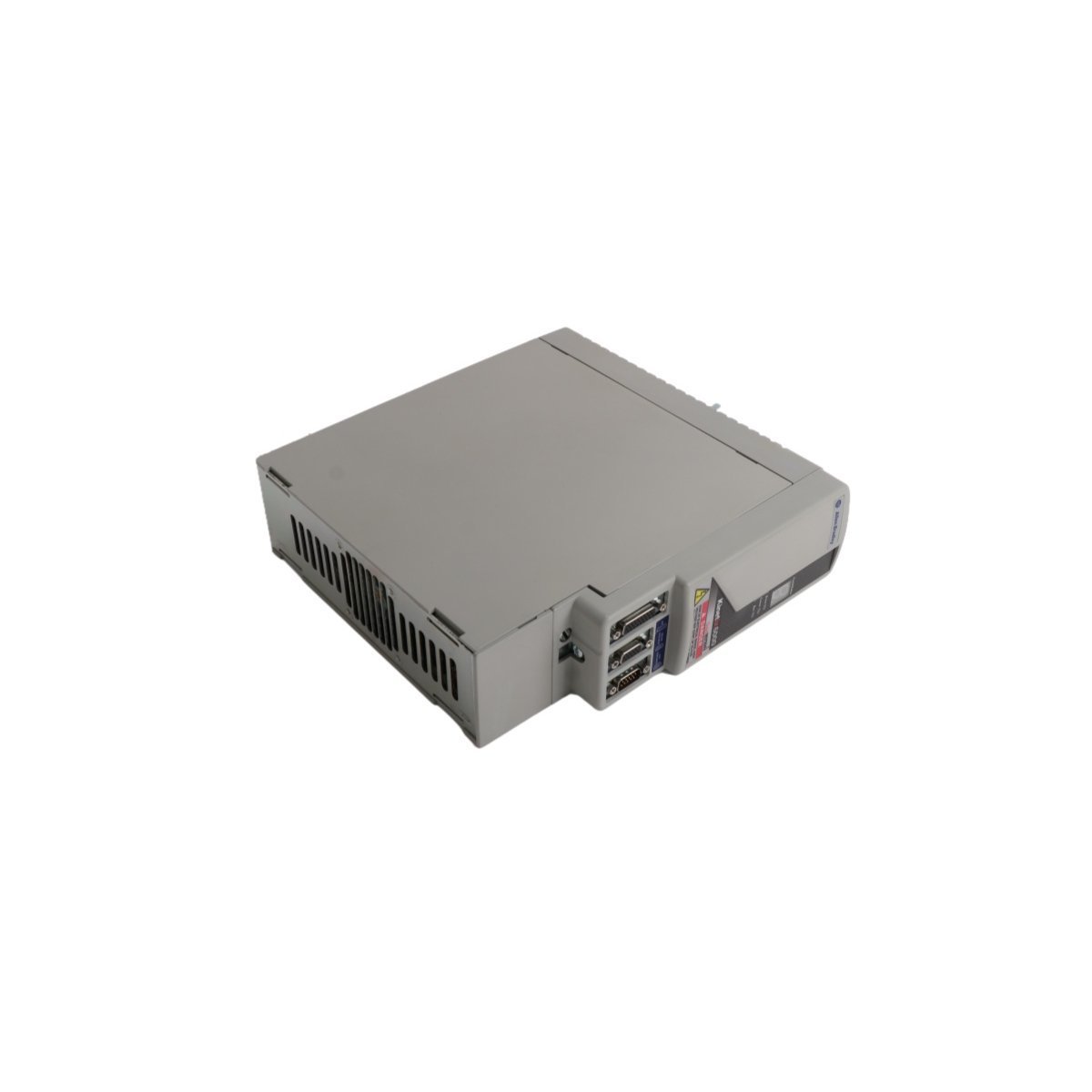

Allen-Bradley 2094-BM01-S Kinetix 6000 Safe-Off Axis Module

The Allen-Bradley 2094-BM01-S operates as a high-performance servo drive axis module within the Kinetix 6000 multi-axis motion control platform. This 400V-class component provides precision motor synchronization and integrated safety protocols for complex industrial automation sequences.

Technical Specifications

The following table summarizes the electrical and physical parameters for the 2094-BM01-S axis module.

Motion Control Functionality and Performance

The Allen-Bradley 2094-BM01-S serves as a core execution unit for synchronized multi-motor systems. By mounting directly onto a Kinetix 6000 power rail, this module shares a common DC bus with other axes, which allows for energy-efficient power distribution and regenerative braking capabilities. The module supports high-speed feedback through direct cable connections, ensuring the ControlLogix motion engine maintains sub-millisecond precision over motor velocity and position.

Furthermore, the 2094-BM01-S features peak enhancement technology. This allows the drive to handle transient high-torque demands during rapid acceleration phases without requiring oversized hardware. Consequently, plant engineers can reduce the overall footprint of the control cabinet while maintaining the aggressive duty cycles required for modern packaging and assembly lines.

Integrated Safety and System Integrity

Safety remains a fundamental aspect of the 2094-BM01-S architecture. The “S” suffix designates the inclusion of Integrated Safe Torque-Off (STO) functionality. This hardware-based safety circuit allows the control system to remove rotational power from the motor without disconnecting the entire drive from the power source. This capability prevents unintended restarts and meets the rigorous ISO 13849-1 PLe/SIL3 standards, significantly reducing machine downtime during routine operator interventions.

Additionally, the module maintains system integrity through advanced thermal monitoring and absolute encoder support. By tracking motor position during power-loss events, the absolute encoder interface eliminates the need for time-consuming homing routines upon restart. These features make the 2094-BM01-S a vital component for high-availability manufacturing environments where safety and throughput must coexist.
