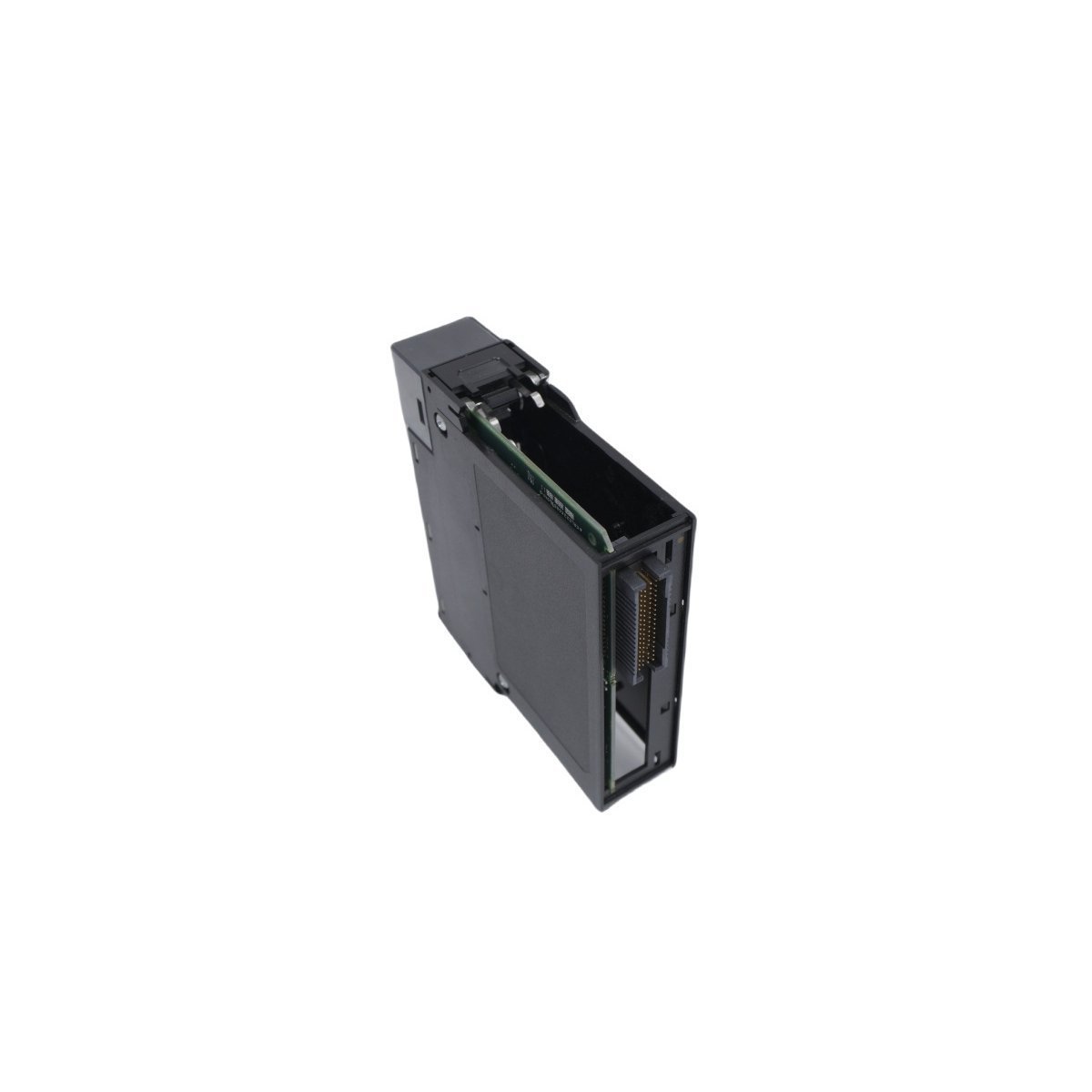

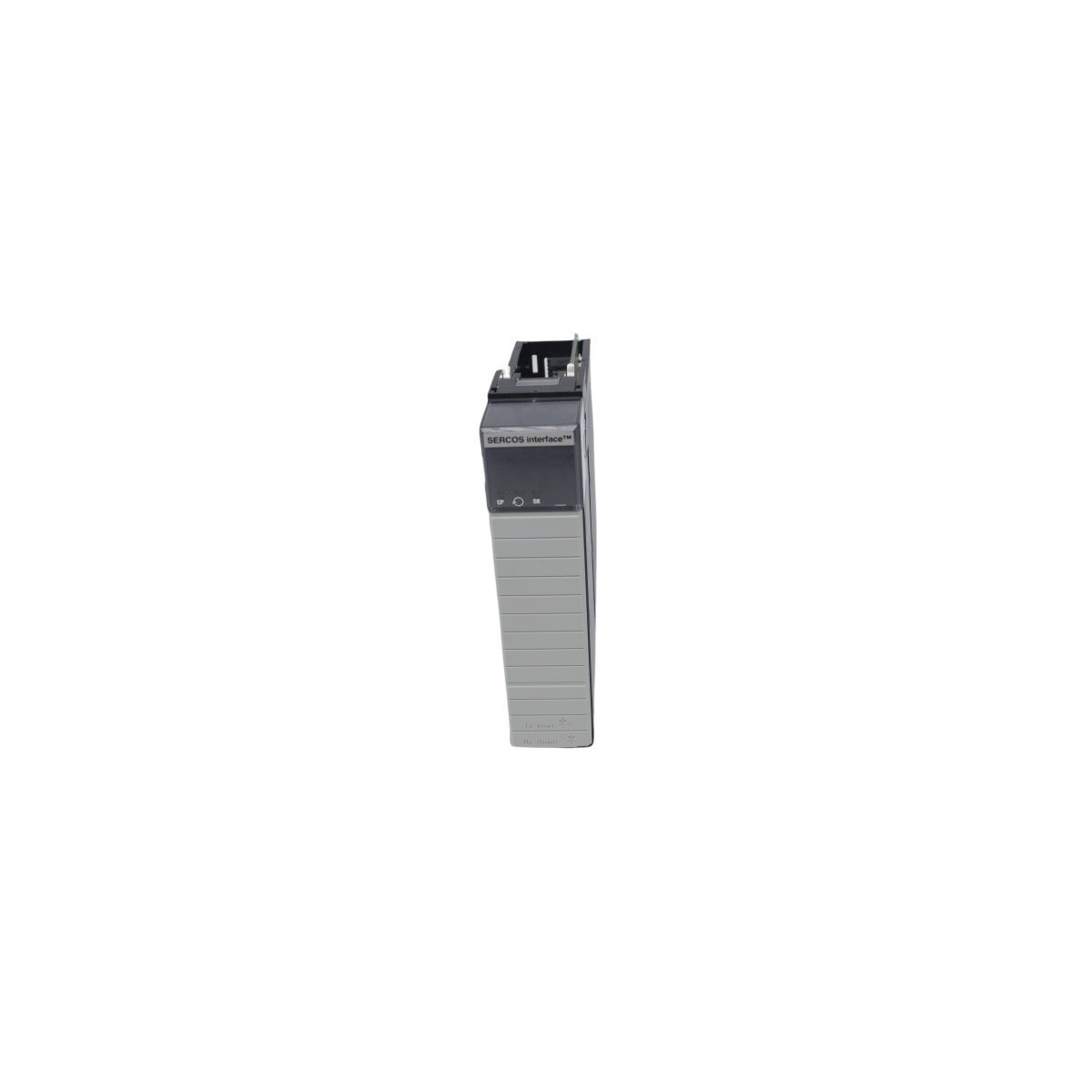

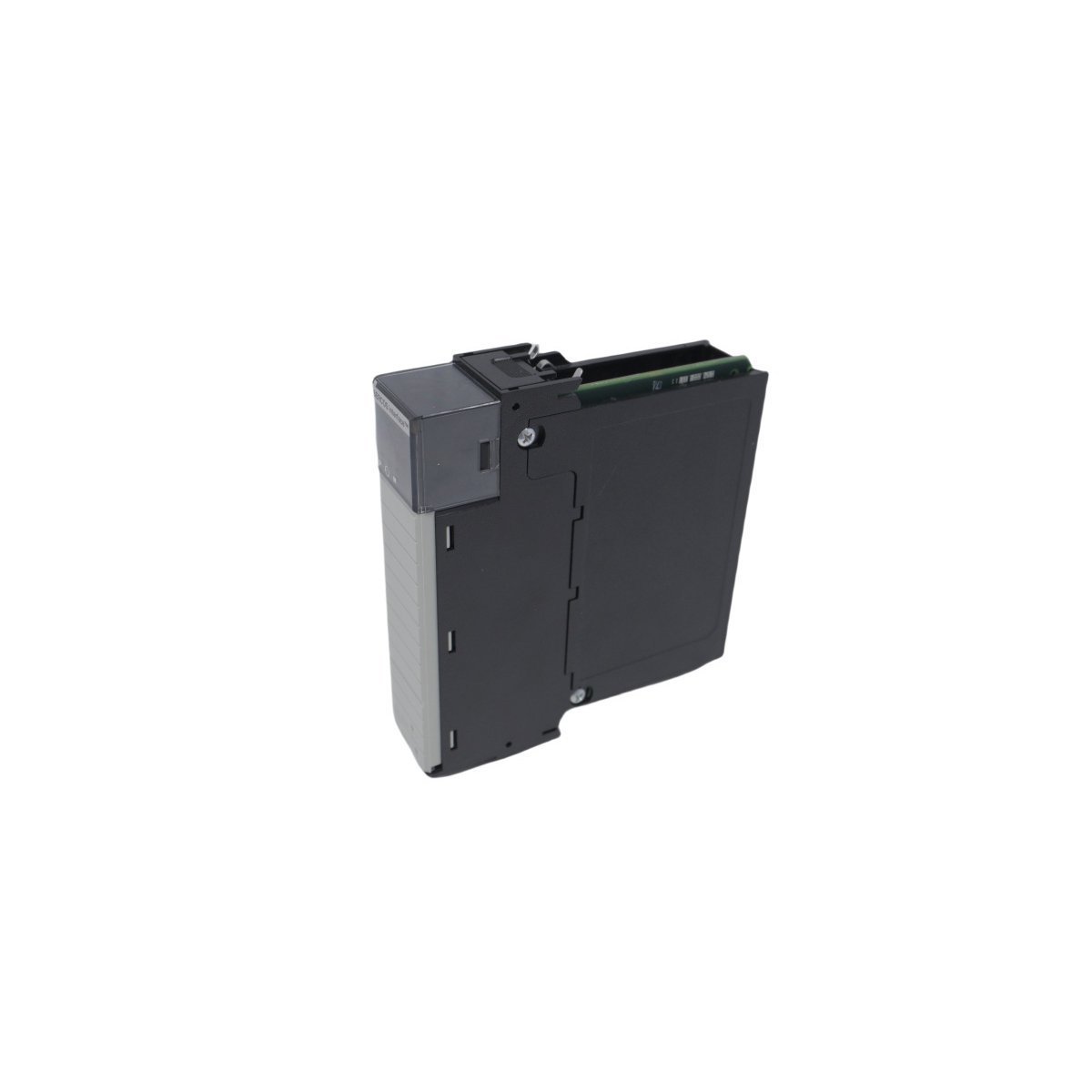

1756-M03SE Allen-Bradley SERCOS Motion Module for Kinetix Drives

Brief Product Description

The Allen-Bradley 1756-M03SE is a high-performance ControlLogix SERCOS interface module designed to coordinate sophisticated 3-axis motion control via fiber-optic communication. This module streamlines the integration between ControlLogix chassis and Kinetix servo drives by replacing complex copper wiring with a high-speed digital link.

Product Overview

The 1756-M03SE functions as a critical motion controller within the Rockwell Automation Integrated Architecture, specifically managing real-time synchronization for up to three independent axes. By utilizing the SERCOS (Serial Real-time Communication System) interface standard, this module executes precise position, velocity, and torque loops. It facilitates seamless data exchange with Kinetix 2000, 6000, 7000, and Ultra3000 servo drives. The transition to fiber-optic technology significantly enhances system reliability by providing total electrical isolation and immunity to industrial electromagnetic interference (EMI). Consequently, engineers can achieve tighter machine tolerances and faster cycle times without the traditional overhead of complex point-to-point wiring.

Technical Specifications

The following parameters define the operational and physical characteristics of the 1756-M03SE interface module:

• Manufacturer: Allen-Bradley / Rockwell Automation
• Model Number: 1756-M03SE
• Series: ControlLogix Motion Control
• Interface Type: SERCOS over Fiber Optic
• Axis Capacity: Supports up to 3 axes of motion
• Data Transmission Rates: 4 Mbps or 8 Mbps (Configurable)
• Backplane Current (5.1V DC): 760 mA
• Backplane Current (24V DC): 2.5 mA
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Physical Dimensions: 3.5 x 14 x 14.5 cm
• Weight: 0.22 kg
• Chassis Compatibility: Fits any standard 1756 ControlLogix slot (A4, A7, A10, A13, A17)

Advanced Motion Control Capabilities

This module implements the IEC 61491 international standard, ensuring high-fidelity communication across diverse motion hardware. Depending on the selected data rate, the 1756-M03SE optimizes system performance through variable update periods. At a transmission rate of 8 Mbps, the module achieves cycle times as low as 0.5 ms for high-speed applications. Furthermore, the fiber-optic interface eliminates the need for up to 18 discrete digital wires per axis, which dramatically reduces installation labor and simplifies troubleshooting. The module maintains stable operation in rigorous industrial environments, supporting both open-loop and closed-loop motion profiles for complex machinery.

Operational Benefits and Integration

Integrating the 1756-M03SE into a ControlLogix system provides immediate access to integrated motion instructions within the Studio 5000 environment. This unified software approach allows for rapid commissioning and comprehensive diagnostics of the entire SERCOS ring. The module automatically detects connected drives and assists in configuring drive parameters, which minimizes manual entry errors. Furthermore, its ruggedized design withstands wide storage temperature fluctuations and extreme industrial conditions, ensuring long-term hardware availability for critical production lines.
